Commissioning Instrument Process

Who is this course aimed at?

The Diploma of Electrical and Instrumentation – is aimed at those that would like to increase their professional development by broadening their knowledge in understanding how processing plant architectures are put together and how to write up plant control philosophy. You will learn the fundamentals of field instrumentation coupled with the programmable logic controller (PLC) in assisting you to fault find more easily.Obtaining a Diploma of Electrical and Instrumentation could potentially open more doors for you and allows the individual to branch out into other pathways in the future. Certificate will be issued by Tech Skill Australia.

COURSE DURATION:

SCOPE:

Option 1: Unrestricted electrical license holder issued in an Australian state or territory with no instrumentation qualifications and instrumentation work experience: 7 days

This qualification provides competencies to develop, select, install, commission, maintain and diagnose faults/malfunctions on electrical, instrumentation and control equipment and systems. It includes ERAC requirements for an ‘Electrician’s licence’.

ELIGIBILITY FOR COURSE ENROLMENT:

• A current ‘Unrestricted Electricians’ licence holder issued in an Indonesia state or territory
• Current Instrumentation work experience

WHY CHOOSE TEKNIKAL KARYA SERVICE (TKS)?

Our courses are fast tracked to cater for your busy schedule.
Our small class sizes allow you the opportunity to engage one on one with our industry specialist trainers who deliver and assess to current industry practices.
You will undergo one on one practical training with qualified Instrument and Electrical trainers.
We offer flexible training to accommodate difficult rosters / work schedules.
We offer a 1 weekly training schedule.

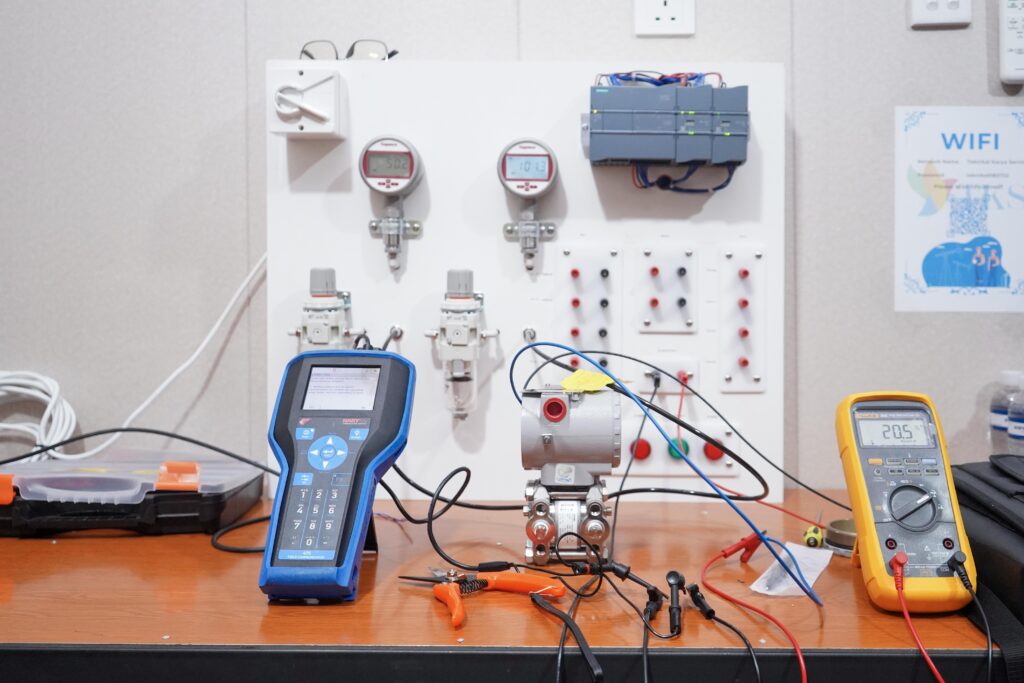

You will be exposed to hands on practicals in the following technologies:
1. Flow – configuration and control
2. Pressure (suppression/elevation of transmitter)
3. Radar / Ultrasonic configuration
4. Capacitance level configuration
5. Temperature (RTD / Thermocouples)
6. PLC and HMI configuration
7. Operation of Dead Weight Tester
8. Configuration of smart devices via Hart modem and hand held configurator,
9. Calibration of valves
10. P&ID control
11. Understanding how to test that Magnetic flow meter are operational
12. Tube bending
13. Configure and maintain industrial control system networks
14. Write specification for projects – electrotechnology

Entry Requirements

The entry requirement for this qualification is: Certificate in Electrotechnology Electrician or a current ‘Unrestricted Electricians License’ or its equivalent issued in an Indonesia or equivalent state or territory.

Other units of competency may contribute towards the elective units for Diploma of Electrical and Instrumentation. Teknikal Karya Service shall assess candidate’s qualifications on a case to case basis.

COURSE OUTCOMES:

A) Full qualification – Diploma of Electrical and Instrumentation

B) Statement of Attainment (SOA) - Diploma of Electrical and Instrumentation

Graduates who are successfully competent in both theoretical and practical training, completing all units of competency in the training package will receive the full qualification.

This Statement is issued to a student who has successfully completed one or more units of competency in the training package but does not meet the requirements for a full qualification and to Electrical Engineers.

Configure and maintain insdutrial control system networks

Develop, enter and verify word and analogue control programs for programmable logic controllers

Develop strategies to address environmental and sustainability issues in the energy sector

Verify compliance and functionality of instrumentation and control installations

Use instrumentation drawings, specifications, standards and equipment manuals

Solve problems in temperature measurement components and systems

Solve problems in pressure measurement components and systems

Solve problems in density/level measurement components and systems

Set up and configure human-machine interface (HMI) and industrial networks

Set up and adjust advanced PID process control loops

Set up and adjust PID control loops

Install instrumentation and control cabling and tubing

Install instrumentation and control apparatus and associated equipment

Find and rectify faults in process final control elements

Develop, enter and verify discrete control programs for programmable controllers

Write specifications for electrotechnology engineering projects

Participate in development and follow a personal competency development plan

Implement and monitor energy sector OHS policies and procedures

Compile and produce an energy sector detailed report
